Pluggable screw-free connectorsDKPGF-635-XXP
DKPGF-635-XXP
6.35mm
| Approval |
|
| Category | Pluggable screw-free connectors |

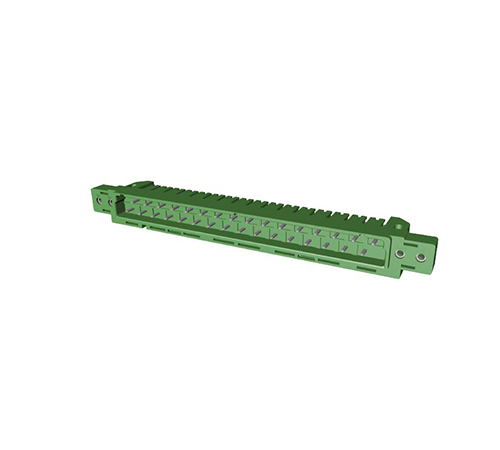

| Model | DSTF-762R-32P |
| Pitch | 7.62mm |
| Poles | 32P |
| Product application | 35kV connector for on-site device |
| Pitch[mm] | 7.62 |
| PCB hole diameter[mm] | 1.2 |
| Pin dimensions[mm]x[mm] | 0.8x0.8 |
| Technical data in accordance with IEC/DIN and VDE | |
| Rated voltage/Nominal current[V]/[A] | 250/10 |
| Surge voltage[kV] | 5.0 |
| Withstanding voltage/Current breakdown[VAC/min]/[A/S] | 2500/500 |
| Insulation Resistance/contact Resistance[MΩ]/[mΩ] | ≥500/≤5 |
| Capacity connection | |
| Cross section[mm2] | |
| Outside connection | |
| Stripping length[mm] | |
| Insulating material | PBT+GF |
| Inflammability class in acc.with UL 94 | V0 |
| Specification of flange thread |
Jointlean provides samples for user experience
DSTF-762R-32P
